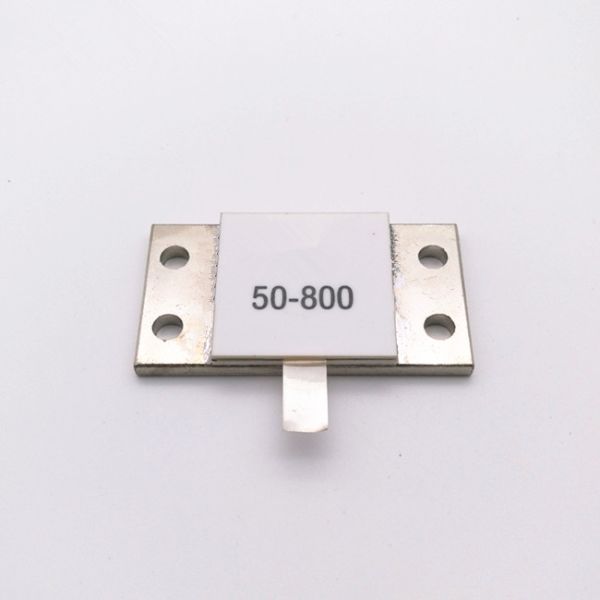

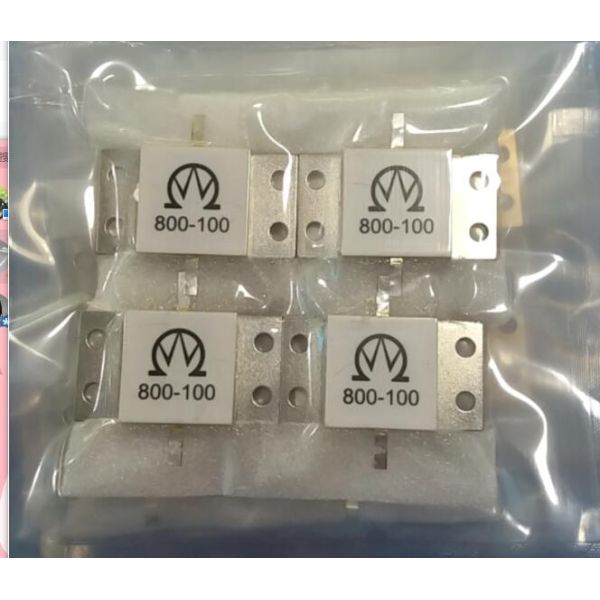

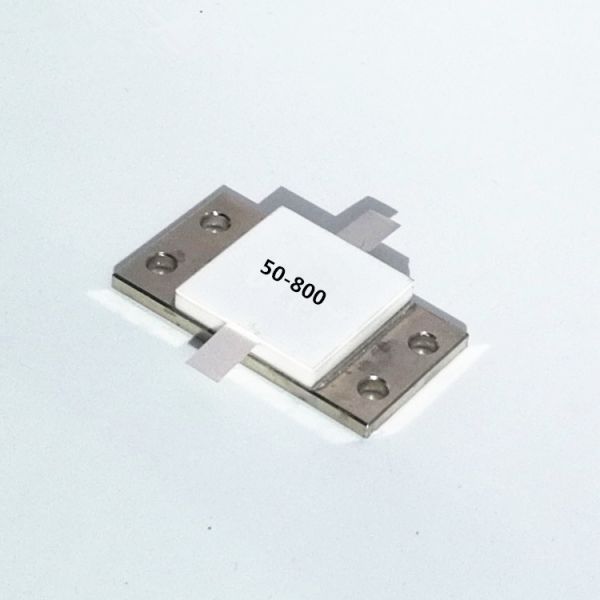

RIG High Power Flange Mount Terminations
High-performance RF resistors available in 50Ω and 100Ω configurations with power ratings up to 1000W. Features compact design, stable performance, and easy installation for industrial applications.
Product Specifications
Electrical Characteristics
- Nominal resistance range: 1Ω - 500Ω
- Resistance tolerance: ±5%
- Frequency range: 0-2GHz
- Standing wave ratio: 1.2-1.3
- Insulation resistance: ≥1GΩ
- Withstand voltage: 500V/1mm (substrate thickness)
Physical Characteristics
- Terminal strength: 10N, 5S (no loose and fall off)
- Solderability: 240℃, 3s (tin layer covering area of 95%)
Environmental Characteristics
| Parameter |
Specification |
| Rated power |
1-1000W (70°C) |
| Temperature range |
-55°C to +165°C |
| TCR |
≤±150PPM/°C |
| Temperature shock (-55°C/+125°C, 3 times) |
ΔR≤±5%R |
| Moisture proof (GJB306A-96-Method106) |
ΔR≤±5%R |
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±3%R, No mechanical damage |
| Test at low temperature (-55°C, 24h) |
ΔR≤±5%R |
| Load life (96) |
ΔR≤±5% |
| Collision |
ΔR≤±3%R |
Dimensions
Frequently Asked Questions
Are you a factory or trading company?
We are a factory, ensuring first-hand pricing. All products feature high performance and competitive pricing.
How can we guarantee quality?
Pre-production samples before mass production; final inspection before shipment.
What products do you offer?
Potentiometers, Resistors, EMI Filters, Knobs, Switches
Why choose us over other suppliers?
Established in 2005, we specialize in developing and manufacturing potentiometers, AC/DC noise filters, and ceramic power resistors, ensuring high quality, excellent service, and competitive pricing.
What services do you provide?
Delivery Terms: FOB, CFR, CIF, EXW, FCA; Payment Currency: USD, EUR, CNY; Payment Methods: T/T, L/C, MoneyGram, Western Union, Cash; Languages: English, Chinese
